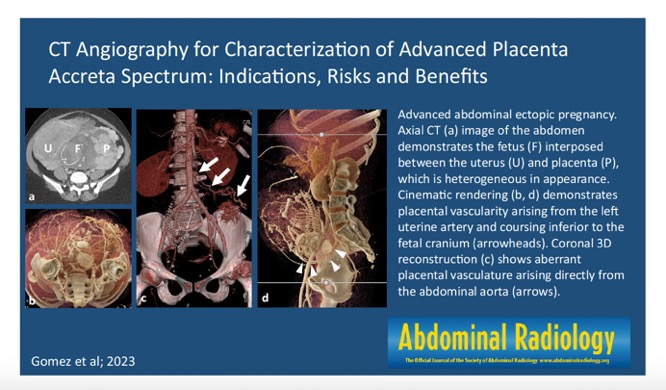

CT angiography for characterization of advanced placenta accreta spectrum: indications, risks, and benefits.
Gomez EN, Ahmed TM, Macura K, Fishman EK, Vaught AJ.
Abdom Radiol (NY). 2023 Nov 21. doi: 10.1007/s00261-023-04105-7. Epub- “Placenta accreta spectrum disorder (PASD) encompasses various types of abnormal placentation in which chorionic villi directly adhere to or invade the myometrium. The incidence of PASD has dramatically risen in the US over the past 3 decades owing to the increased rates of patients undergoing cesarean sections. While PASD remains a significant cause of maternal morbidity and mortality, accurate prenatal identification and characterization of PASD is associated with improved outcomes. Although ultrasound is the first-line imaging modality in the evaluation of PASD, with MRI serving as an adjunct, computed tomography angiography (CTA) may also offer unique diagnostic advantages in cases of advanced PASD by providing superior visualization of placental and abdominopelvic vasculature and enabling the creation of comprehensive vascular maps to roadmap complex surgical interventions.”
CT angiography for characterization of advanced placenta accreta spectrum: indications, risks, and benefits.
Gomez EN, Ahmed TM, Macura K, Fishman EK, Vaught AJ.
Abdom Radiol (NY). 2023 Nov 21. doi: 10.1007/s00261-023-04105-7. Epub - Placenta accreta spectrum disorder (PASD) refers to a range of clinical conditions stemming from abnormal placental implantation. PASD has traditionally been classified on the basis of the depth of myometrial invasion by the placenta and comprises three variants. Placenta accreta, the mildest form of PASD, refers to a defect in the decidua basalis through which chorionic villi adhere to the myometrium with trophoblastic invasion. Placenta increta denotes a more invasive form of placentation in which placental villi invade directly into the myometrium. The most severe form of PASD is placenta percreta in which placental villi penetrate the myometrium in its entirety, extending to or beyond the level of the uterine serosa with potential for invasion of adjacent structures or vascular recruitment.”
CT angiography for characterization of advanced placenta accreta spectrum: indications, risks, and benefits.
Gomez EN, Ahmed TM, Macura K, Fishman EK, Vaught AJ.
Abdom Radiol (NY). 2023 Nov 21. doi: 10.1007/s00261-023-04105-7. Epub - “The key diagnostic advantage conferred by CTA in the evaluation of abnormal placentation is improved visualization of placental vasculature. These advantages stem from the higher spatial and temporal resolution of CTA and its faster acquisition time compared to MRI. Multiple studies have demonstrated how these advantages translate to superior visualization of abdominal vasculature.”
CT angiography for characterization of advanced placenta accreta spectrum: indications, risks, and benefits.
Gomez EN, Ahmed TM, Macura K, Fishman EK, Vaught AJ.
Abdom Radiol (NY). 2023 Nov 21. doi: 10.1007/s00261-023-04105-7. Epub - “This paper represents the first reported evaluation of the use of abdominopelvic CT angiography (CTA) for diagnosing and optimizing surgical management of advanced PASD. In most cases of PASD, US and MR evaluation are sufficient. However, CTA offers a diagnostic advantage by providing superior visualization of placental and abdominopelvic vasculature, permitting the creation of detailed vascular maps that can be used for planning complex operative interventions. The diagnostic consideration of abdominopelvic CTA for PASD must be evaluated within the context of both the limitations of MRI and the potential risks of fetal radiation exposure, and in most cases, CTA should be reserved for cases in which the pathology is such that suboptimal delivery planning would place the patient at risk of significant morbidity and mortality.”
CT angiography for characterization of advanced placenta accreta spectrum: indications, risks, and benefits.
Gomez EN, Ahmed TM, Macura K, Fishman EK, Vaught AJ.
Abdom Radiol (NY). 2023 Nov 21. doi: 10.1007/s00261-023-04105-7. Epub
3D and cinematic rendering of abdominopelvic pathology in the peripartum period
Naveen Ghuman · Elliot K. Fishman · Erin Gomez
Abdominal Radiology (2023) 48:1383–1394- “3D reconstructions and cinematic rendering can be used to augment radiologists’ interpretation of abdominopelvic pathology in the peripartum and postpartum period. The photorealistic image quality of cinematic rendering shows the texture of different tissues and lesions, aids in defining spatial relationships, and portrays vascular anatomy in superb detail. These techniques have great promise in enhancing interpretation of otherwise complex abdominopelvic pathology in this unique patient population.”
3D and cinematic rendering of abdominopelvic pathology in the peripartum period
Naveen Ghuman · Elliot K. Fishman · Erin Gomez
Abdominal Radiology (2023) 48:1383–1394
- “The spectrum of postpartum complications ranges from relatively self-limiting to life-threatening conditions that can be divided into six categories: infectious conditions (endometritis), thrombotic complications (eg, deep vein thrombosis, ovarian vein thrombophlebitis, HELLP [hemolysis, elevated liver enzymes, and low platelet count] syndrome, or cerebral sinus thrombosis), hemorrhagic conditions (eg, uterine atony, trauma of the lower portion of the genital tract, retained products of conception, uterine artery arteriovenous malformations, or uterine artery pseudoaneurysm), cesarean delivery–related complications (eg, bladder flap hematoma, subfascial hematoma, rectus sheath hematoma, abscess formation, uterine dehiscence, uterine rupture, vesicovaginal fistula, or abdominal wall endometriosis), iatrogenic conditions (eg, uterine perforation), and nonobstetric complications (eg, acute cholecystitis, acute appendicitis, uterine fibroid degeneration, renal cortical necrosis, pyelonephritis, posterior reversible encephalopathy syndrome, or pituitary gland apoplexy).”
A Pictorial Review of Postpartum Complications
Marta Gonzalo-Carballes et al.
RadioGraphics 2020; 40:2117–2141 - “HELLP syndrome is a life threatening condition that occurs in 0.2%–0.8% of pregnancies (37). It typically develops in patients with severe preeclampsia (70%–80% of cases) and usually manifests between 32 and 34 weeks of gestation. However, up to 30% of cases manifest in the postpartum period, usually within 48 hours after delivery. This condition is associated with high maternal and perinatal morbidity and mortality.”
A Pictorial Review of Postpartum Complications
Marta Gonzalo-Carballes et al.
RadioGraphics 2020; 40:2117–2141 - “The etiology and pathophysiologic manifestations of HELLP syndrome are incompletely understood. Endothelial dysfunction leads to activation of intravascular coagulation, with fibrin deposition in the capillaries. Consequently, multiple microcirculation disorders take place. Histopathologic analysis of the liver shows fibrin deposition in the hepatic sinusoids that can lead to progressive obstruction of the blood flow, periportal hemorrhage, and hepatocellular necrosis.”
A Pictorial Review of Postpartum Complications
Marta Gonzalo-Carballes et al.
RadioGraphics 2020; 40:2117–2141 - “Clinical manifestations are variable and include epigastric or right upper quadrant pain, nausea, and vomiting. The classic symptoms of preeclampsia, hypertension, and proteinuria may be minimal or absent. The diagnosis of HELLP syndrome is based on both clinical and biochemical features. The contribution of imaging is confirmation of the diagnosis and assessment for complications.”
A Pictorial Review of Postpartum Complications
Marta Gonzalo-Carballes et al.
RadioGraphics 2020; 40:2117–2141 - “CT is the modality of choice for evaluating patients with HELLP syndrome who are in unstable condition, because active bleeding and hepatic rupture are better shown with this technique. Hepatic hematoma and hepatic infarction are also properly evaluated with contrast-enhanced CT.”
A Pictorial Review of Postpartum Complications
Marta Gonzalo-Carballes et al.
RadioGraphics 2020; 40:2117–2141 - “Postpartum hemorrhage is one of the leading causes of maternal mortality; the death rate due to this cause is high in lower-income countries. Several studies have reported an increasing trend in the incidence of postpartum hemorrhage in high-income countries. Postpartum hemorrhage is classified as primary when it occurs within the first 24 hours after delivery and secondary when it develops between 24 hours and 12 weeks after delivery.”
A Pictorial Review of Postpartum Complications
Marta Gonzalo-Carballes et al.
RadioGraphics 2020; 40:2117–2141 - “The postpartum period is a clearly defined physiologic state, and knowledge of its anatomic and pathophysiologic particularities is crucial for an accurate diagnosis when complications arise. A familiarity with the typical appearance of the postpartum anatomy as it is seen with different imaging techniques enables correct differentiation of the substantially overlapping normal and abnormal postpartum radiologic findings. In many cases, these findings are almost indistinguishable, making the patient’s clinical history the defining element. Communication with the patient is a cornerstone for accurate diagnosis and proper treatment.”
A Pictorial Review of Postpartum Complications
Marta Gonzalo-Carballes et al.
RadioGraphics 2020; 40:2117–2141 - Hepatic Bleeds: Etiology
- hepatocellular carcinoma
- hepatic adenoma
- other liver tumors, such as focal nodular hyperplasia, hemangiomas, and metastases
- HELLP syndrome
- Amyloidosis
- connective tissue diseases such as polyarteritis nodosa and systemic lupus erythematosus
- infectious diseases such as typhoid fever, and parasitic diseases such as malaria
- “PE is not an unusual entity in the pregnant woman; the prevalence of venous thromboembolism is increased in the gravid population, up to five times more than that of the non-pregnant state . PE is a potentially fatal condition, especially if it remains undiagnosed and it is associated with mortality rates in pregnancy up to 15%. Imaging is the most accurate tool to confirm or rule out PE. Diagnostic work-up in cases of suspected PE includes an initial evaluation of both lower extremities with compression Doppler ultrasound, in an attempt to detect deep venous thrombosis. When Doppler ultrasound is positive for deep venous thrombosis, there is no need for further imaging and treatment should be given . Pulmonary CTA is recommended as a second-line imaging test in pregnant woman after negative lower extremity ultrasound, to exclude PE ; interestingly, 10% of patients with a high clinical suspicion of PE and negative ultrasound results have angiographically proven PE.”
Imaging during pregnancy: What the radiologist needs to know,
Charis Bourgioti et al.
Diagnostic and Interventional Imaging,(in press) - "Iodinated contrast media intravenously or orally administrated are classified as FDA Category-B drugs (no mutagenic or teratogenic effects demonstrated in animal reproductive studies; however, there are no adequate data based on controlled studies in pregnant women). Intravenous iodinated contrast media may be administrated to the pregnant patient if it is medically indicated and only if the information cannot be acquired without a contrast agent, if the administration is expected to affect the management of the patient and fetus, and if it is not possible to wait until after delivery.”
Imaging during pregnancy: What the radiologist needs to know,
Charis Bourgioti et al.
Diagnostic and Interventional Imaging,(in press) - “Traumatic injuries are the leading non-obstetric cause of maternal death. After trauma, there is an urgent need for quick and accurate imaging of the mother and concerns about fetal radiation exposure should not delay or postpone any diagnostic or interventional study, if it is deemed necessary. Examinations that do not include the gravid uterus (e.g., head or chest CT) should be performed without concerns about fetal safety.”
Imaging during pregnancy: What the radiologist needs to know,
Charis Bourgioti et al.
Diagnostic and Interventional Imaging,(in press) - "Acute appendicitis is the most common non-obstetric condition requiring emergency surgery during pregnancy. Appendicitis in the gravid population is associated with important complications, such as premature labor and poor fetal outcome; interestingly, there is a higher rate of perforation in the pregnant patients (43%) compared to the general population (4–19%) and, therefore, early diagnosis is essential for optimal treatment.”
Imaging during pregnancy: What the radiologist needs to know,
Charis Bourgioti et al.
Diagnostic and Interventional Imaging,(in press) - "Placental abruption is the result of premature separation of the placenta from the uterine myometrium after gestational week 20 and may be seen in up to 1.3% of pregnancies. Abdominal pain and severe vaginal bleeding are typical clinical features. Early detection is important, as there is an associated fetal mortality and morbidity rate of 10–25%. Ultrasound is used to confirm the clinical diagnosis. MRI should be considered when ultrasound is negative but there is a high clinical suspicion for abruption; this is important in placental abruption with separation > 50%, which is associated with a high-risk of fetal demise.”
Imaging during pregnancy: What the radiologist needs to know,
Charis Bourgioti et al.
Diagnostic and Interventional Imaging,(in press) - "PASD is a potentially fatal condition of pregnancy, especially if it remains undiagnosed, with an increasing incidence over the last years, due to the wide use of C-section. Although typically diagnosed with ultrasound, MRI has been shown to be a reliable complementary tool to better identify placental invasiveness in posteriorly located placentas, when ultrasound is inconclusive and when extrauterine placental spread in cases of placenta percreta is suspected, for better topography assessment.”
Imaging during pregnancy: What the radiologist needs to know,
Charis Bourgioti et al.
Diagnostic and Interventional Imaging,(in press) - "Currently, there is an increasing role for imaging in the diagnosis and management of maternal pathology during gestation. Potentially fatal conditions such as PE, trauma, PASD or pregnancy-associated cancers can be identified early and accurately with available imaging methods, thus improving maternal and fetal outcomes. Knowledge of current imaging recommendations and safety guidelines for the pregnant population may help both clinicians and radiologists select the most appropriate modality to image the expectant mother without causing any harmful effect on the fetus.”
Imaging during pregnancy: What the radiologist needs to know,
Charis Bourgioti et al.
Diagnostic and Interventional Imaging,(in press)
- “Postpartum hemorrhage continues to be the leading preventable cause of maternal illness and death globally. Worldwide, postpartum hemorrhage accounts for 8% of maternal deaths in developed regions of the world and 20% of maternal deaths in developing regions. The United States has one of the highest maternal mortality rates among developed countries, with approximately 11% of all maternal deaths associated with postpartum hemorrhage.3 During the period from 1993 through 2014, the rate of postpartum hemorrhage (which was defined as blood loss >1000 ml after vaginal or cesarean delivery) requiring a blood transfusion4 increased from approximately 8 cases per 10,000 deliveries to 40 per 10,000 deliveries in the United States.”
Postpartum Hemorrhage
Jessica L. Bienstock et al.
N Engl J Med 2021;384:1635-45 - “The traditional definition of postpartum hemorrhage is blood loss of more than 500 ml after a vaginal delivery or more than 1000 ml after a cesarean delivery. More recently, postpartum hemorrhage has been redefined as a cumulative blood loss of 1000 ml or more or blood loss associated with signs or symptoms of hypovolemia, irrespective of the route of delivery. Typical clinical signs and symptoms of hypovolemia (e.g., hypotension and tachycardia) due to postpartum hemorrhage may not appear until blood loss exceeds 25% of total blood volume (>1500 ml during late pregnancy).”
Postpartum Hemorrhage
Jessica L. Bienstock et al.
N Engl J Med 2021;384:1635-45 - “Postpartum hemorrhage is considered to be primary when it occurs within the first 24 hours after delivery and secondary when it occurs between 24 hours and up to 12 weeks after delivery. The causes of postpartum hemorrhage can be summarized by the four “T’s”: tone (uterine atony), trauma (lacerations or uterine rupture), tissue (retained placenta or clots), and thrombin (clotting-factor deficiency).10 The most common cause is uterine atony (accounting for approximately 70% of cases), followed by obstetrical lacerations (approximately 20%), retained placental tissue (approximately 10%), and clotting-factor deficiencies (<1%).”
Postpartum Hemorrhage
Jessica L. Bienstock et al.
N Engl J Med 2021;384:1635-45 - "The causes of postpartum hemorrhage can be summarized by the four “T’s”: tone (uterine atony), trauma (lacerations or uterine rupture), issue (retained placenta or clots), and thrombin (clotting-factor deficiency). The most common cause is uterine atony (accounting for approxi- mately 70% of cases), followed by obstetrical lac- erations (approximately 20%), retained placental tissue (approximately 10%), and clotting-factor deficiencies (<1%).”
Postpartum Hemorrhage
Jessica L. Bienstock et al.
N Engl J Med 2021;384:1635-45 - "Other risk factors for postpartum hemorrhage are closely linked to the type of hemorrhage that develops. For example, obstetrical lacerations can be caused by operative vaginal delivery, precipitous delivery, or episiotomy, whereas retained placental tissue can be caused by placenta accreta spectrum (PAS; a spectrum of abnormal placentation disorders, including placenta accreta, placenta increta, and placenta percreta), which is associ- ated with prior uterine surgery. Retained placental tissue can also be the result of incomplete delivery of the placental tissue and membranes. Maternal coagulopathy that leads to postpartum hemorrhage can be a complication of severe pre- eclampsia and eclampsia, HELLP (hemolysis, elevated liver-enzyme level, and low platelet count) syndrome, intrauterine fetal death, placental abruption, or a coagulation disorder that is acquired (e.g., amniotic fluid embolism) or inherited.”
Postpartum Hemorrhage
Jessica L. Bienstock et al.
N Engl J Med 2021;384:1635-45 - "Postpartum hemorrhage remains a clinically significant cause of maternal complications and death; worldwide, one woman dies from postpartum hemorrhage every 7 minutes. There- fore, prompt identification of patients who are at risk for postpartum hemorrhage, routine ac- tive management of the third stage of labor, expeditious assessment of blood loss, appropriate patient monitoring, and management of postpartum hemorrhage are important.”
Postpartum Hemorrhage
Jessica L. Bienstock et al.
N Engl J Med 2021;384:1635-45
- “Placenta percreta (PP) is a condition in which the placenta abnormally penetrates entirely through the myometrium and into the uterine serosa. This might be complicated by attachment of the placenta to surrounding structures or organs, such as the urinary bladder or rectum. PP is a potentially fatal condition, and mortality rate is correlated to the extent of involvement of surrounding structures. When PP is complicated by bladder invasion, mortality rates have been estimated as high as 9.5% and 24% for mother and child, respectively.”
Placenta Percreta With Invasion into the Urinary Bladder
Zachary L. Smith et al.
Urology Case Reports,Volume 2, Issue 1,2014,Pages 31-32 - "The incidence of PP has increased 50-fold in the last half-century to a currently estimated 1 in 1000 pregnancies. This increased prevalence is attributed to the increased frequency of Caesarean deliveries. The incidence of concomitant bladder invasion is much lower, occurring in approximately 1 in 10,000 births. he diagnosis of PP might be made during prenatal screening ultrasound; however, bladder involvement is usually not identified until the time of delivery.”
Placenta Percreta With Invasion into the Urinary Bladder
Zachary L. Smith et al.
Urology Case Reports,Volume 2, Issue 1,2014,Pages 31-32 - "PP is a morbid condition of increasing incidence. It should be considered in any pregnant patient presenting with gross hematuria, although this is not a sensitive finding. A previous history of Caesarean section might be associated with PP; however, there has been no correlation between other pelvic procedures to this con- dition, making screening even more difficult. After review of our case and the current published data available, it is our opinion that early urologic consultation and a multidisciplinary approach to delivery and management are of utmost importance. If possible, preoperative ureteral catheter placement is recommended to aid in intraoperative identification of ureters.”
Placenta Percreta With Invasion into the Urinary Bladder
Zachary L. Smith et al.
Urology Case Reports,Volume 2, Issue 1,2014,Pages 31-32
- Advanced abdominal pregnancy (AAP) is defined as a pregnancy of over 20 weeks’ gestation with a fetus living, or showing signs of having once lived and developed, in the mother’s abdominal cavity Abdominal pregnancy has an incidence of about 1 in 400 to 1 in 50,000 deliveries, and the variable incidence depends on the characteristics of a particular geographic region. It is associated with a high rate of maternal and fetal complications.
- Ectopic pregnancy is estimated to occur in 1–2% of pregnancies. Over 90% are located in the fallopian tube, and the remainder implant in locations such as the abdomen, cesarean (hysterotomy) scar, cervix, and ovary. Abdominal pregnancy accounts for 1.4% of ectopic pregnancies . Most cases of abdominal pregnancies are secondary to aborted or ruptured tubal pregnancy.
- “Abdominal pregnancies constitute approximately 1% of all ectopic pregnancies, occurring in 1/2200 to 1/10 200 pregnancies and 1/6000 to 1/9000 births. Mortality rates are 7.7 times higher than in tubal pregnancy, and 89.8 times higher than in intrauterine pregnancy. Because of the rarity and associated mortality of abdominal pregnancies, early diagnosis and early recourse to intervention is paramount.”
Early abdominal ectopic pregnancy: challenges, update and review of current management
Nilesh Agarwal et al.
The Obstetrician & Gynaecologist 2014;16:193–8 - • Early abdominal ectopic pregnancy (EAP), though rare, has a high mortality rate.
• There are no pathognomic symptoms of abdominal pregnancy. Symptoms are akin as for other types of ectopic pregnancy, thus a high index of suspicion is necessary for diagnosis.
• The tool of choice for diagnosis is ultrasound but it only gives 50% accuracy when used along with clinical evaluation. On occasion, magnetic resonance imaging may help to diagnose EAP.
• Medical management is commonly used where potential life-threatening bleeding is anticipated. A number of women who are treated medically may need subsequent treatment with multiple therapies.
• Surgical management requires a great deal of surgical expertise and in most cases a multidisciplinary approach in anticipation of possible life-threatening bleeding during the operation.
Early abdominal ectopic pregnancy: challenges, update and review of current management
Nilesh Agarwal et al.
The Obstetrician & Gynaecologist 2014;16:193–8 - “EAP is rare, and successful management depends on a high index of suspicion. While ultrasound and serial human chorionic gonadotrophin may help in the diagnosis, there is no single diagnostic tool available. At laparoscopy it is important that if an ectopic pregnancy is not visualised in the usual locations, then all of the abdominal cavity is inspected to include all abdominal organs. If the diagnosis is still not confirmed then MRI or intraoperative ultrasound may assist in diagnosis.”
Early abdominal ectopic pregnancy: challenges, update and review of current management
Nilesh Agarwal et al.
The Obstetrician & Gynaecologist 2014;16:193–8
- " In cases where CT is needed, protocols should be optimized for the individual with careful planning, with use of dose reduction techniques that allow adequate imaging without unnecessary radiation exposure. As in all cases, the benefit of an imaging diagnosis needs to be weighed against theoretical risks."
Invited Commentary
Levine D
RadioGraphics 2010; 30:1230-1233 - " The risk associated with a radiologic examination appears to be rather low compared with the natural risk. However, any added risk, no matter how small, is unacceptable if it does not benefit the patient."
Radiation Risk: What You Should Know to Tell your Patient
Verdun FR et al.
RadioGraphics 2008:28:1807-1816 - " The risk burden of radiation exposure to the fetus has to be carefully weighed against the benefits of obtaining a critical diagnosis quickly and using a single tailored imaging exam ."
Imaging in Pregnant Patients: Examination Appropriateness
Wieseler KM et al.
RadioGraphics 2010; 30:1215-1233 - "We aimed to combine previously described pregnancy specific CTPA technique alterations with a dose reduction strategy and a low kVp technique to yield a low dose CTPA protocol specifically tailored to pregnant patients, without a reduction in clinical image quality. The results demonstrate that by using a low kVp CTPA technique tailored to pregnancy, effective doses under 1 mSv are routinely achievable in a pregnant population."
Low dose computed tomography pulmonary angiography protocol for imaging pregnant patients: Can dose reduction be achieved without reducing image quality?
Halpenny D et al.
Clinical Imaging: Volume 44, July–August 2017, Pages 101-105 - "Pregnancy is a hypercoagulable state, and consequently pregnant patients are at high risk for PE. The diagnosis of PE can be challenging in pregnant patients, as the clinical signs and symptoms of PE can mimic the physiological effects of pregnancy. In the ATS/STR guidelines, CTPA is the recommended when a chest radiograph is abnormal and therefore maintains an important role in the evaluation of PE. While both V/Q scintigraphy and CTPA have high sensitivities and specificities, CTPA is quick to perform and interpret, and provides a higher rate of alternate diagnoses."
Low dose computed tomography pulmonary angiography protocol for imaging pregnant patients: Can dose reduction be achieved without reducing image quality?
Halpenny D et al.
Clinical Imaging: Volume 44, July–August 2017, Pages 101-105 - "CTPA image quality is potentially impacted by the hemodynamic changes of pregnancy. Increased plasma volume, cardiac output, total vascular resistance, and heart rate can lead to hemodilution of injected intravenous contrast with decreased peak arterial enhancement and shorter contrast material arrival time in the pulmonary arteries. Additionally, the gravid uterus increases IVC pressure and can accentuate transient contrast interruption."
Low dose computed tomography pulmonary angiography protocol for imaging pregnant patients: Can dose reduction be achieved without reducing image quality?
Halpenny D et al.
Clinical Imaging: Volume 44, July–August 2017, Pages 101-105
- “ In major trauma, when there is concern for maternal injury, CT is the mainstay of imaging. The risks of radiation to the pregnancy are small compared with the risk of missed or delayed diagnosis of trauma.”
Imaging of Trauma: Part 2, Abdominal trauma and Pregnancy---A radiologists Guide to Doing What is Best for the Mother and Baby
Sadro C et al.
AJR 2012;199:1207-1219 - “ Trauma is the leading cause of non-obstetric maternal mortality affecting up to 7% of pregnancies and is a significant cause of fetal loss. Approximately 2% of level-1 trauma patients have a positive pregnancy test.”
Imaging of Trauma: Part 2, Abdominal trauma and Pregnancy---A radiologists Guide to Doing What is Best for the Mother and Baby
Sadro C et al.
AJR 2012;199:1207-1219 - “ Causes of trauma in pregnancy include motor vehicle injury (49%), falls (25%), assaults and domestic violence( 18%), and gunshot wounds (4%).”
Imaging of Trauma: Part 2, Abdominal trauma and Pregnancy---A radiologists Guide to Doing What is Best for the Mother and Baby
Sadro C et al.
AJR 2012;199:1207-1219 - “Certain injuries in pregnancy are associated with an increased risk of fetal loss.Pelvic and acetabular fractures occurring in pregnancy are associated with a high maternal (9%) and higher fetal mortality (35%), increasing to 75% for severe fracture patterns.”
Imaging of Trauma: Part 2, Abdominal trauma and Pregnancy---A radiologists Guide to Doing What is Best for the Mother and Baby
Sadro C et al.
AJR 2012;199:1207-1219
"Placental abruptions are often overlooked on CT scans. Sensitivity may be improved by systematic evaluation of the placenta and specificity by training on normal placental morphology."
CT Evaluation of Placental Abruption in Pregnenet Trauma Patients
Wei SH et al.
Emerg Radiol (2009) 16:365-373"True placental abruptions were characterized by large, contiguous, and retroplacental and/or full-thickness areas of low enhancement that form acute angles with myometrium."
CT Evaluation of Placental Abruption in Pregnenet Trauma Patients
Wei SH et al.
Emerg Radiol (2009) 16:365-373- Placental Abruption: Complications
- Pre-term labor
- Fetal distress
- Fetal death in 20-60%
- Maternal shock
- DIC
- Maternal death Conclusion
"In cases where CT is needed, protocols should be optimized for the individual with careful planning, with use of dose reduction techniques that allow adequate imaging without unnecessary radiation exposure. As in all cases, the benefit of an imaging diagnosis needs to be weighed against theoretical risks."
Invited Commentary
Levine D
RadioGraphics 2010; 30:1230-1233- Suspected Acute Abdomen
- There are numerous causes for the acute abdomen
- When a diagnosis can not be made CT is the study of choice - Urolithiasis (r/o)
- Calculi in pregnancy are uncoomon
- Ultrasound is done first but if not helpful CT is done to r/o stone and also look for other causes of flank pain.
- If CT is done low dose non-contrast CT is fine - Trauma
- The severity of the injury determines workup but priority is given to maternal survival
- CT is used as needed in the chest and abdomen
- Most common uterine injury is placental abruption which occurs in up to 40% of patients with severe injury. Uterine rupture is rare - Appendicitis (rule out)
- Most common cause of surgical abdomen in pregnancy (50-70 per 1000 patients)
- Ultrasound can be used first and in some institututions MR is done
- If indeterminate a CT is done using oral and IV contrast material - Pulmonary Embolism
- Leading cause of maternal morbidity
- Pregnancy increases risk of PE by a factor of 5
- Chest x-ray and ultrasound are often first test used to screen
- If chest x-ray and ultrasound are negative and high suspicion CT is done
- VQ scan is done if patients allergic to IV contrast - Common Clinical Scenarios in the Pregnant Patient
- r/o pulmonary embolism
- Trauma
- r/o appendicits
- Urolithiasis
- Acute abdomen 2008 ACR Practice Guidelines
"To maintain a high standard of safety, particularly when imaging potentially pregnant patients, imaging radiation must be applied at levels as low as reasonably achieveable (ALARA), while the degree of medical benefit must counterbalance the well managed levels of risk."
ACR Practice Guideline for imaging pregnant and potentially pregnant adolescents and woman with ionizing radiation (American College of Radiology)
- At 150 mGy the risks will vary on stage of pregnancy but include
- 3% chance of cancer development
- 6% chance of mental retardation
- Loss of 30 IQ points per 100 mGy
- 15% chance of microcephaly - Nonstochastic Effects
- Threshold effects or deterministic effects are caused by exposure to radiation at a high level
- These effects are predictable and involve multicellular injury including chromosomal alterations
- Threshold dose is usually 150 mGy and these patients need to be accessed for termination "As shown in table 1, the ACR suggested that the theoretical risks are not likely at doses less than 100 mGy."
Imaging in Pregnant Patients: Examination Appropriateness
Wieseler KM et al.
RadioGraphics 2010; 30:1215-1233- Stochastic effects
- Are the results of cellular damage likely at the DNA level causing cancer or other germ cell mutations
- They have no threshold dose and are theorized to any with exposure to any amount of radiation
- The threshold for radiation induced Stochastic effects was established at 50mGy - Radiation Effects and Risk
- Stochastic effects
- Nonstochastic effects - Practical Points in Performing CT in the Pregnant Patients
- Make sure that CT is the study of choice
- Prepare the patient for the study as completely as possible (oral contrast etc. done early)
- Design the optimal protocol for that patient (kVp, mAs, etc)
- Scan only the area needed to be scanned
- Monitor the scan to make sure you have a dx - Estimated Average Fetal Radiation Dose from a Single Acquisition with 64 MDCT
Type of CT exam
Dos
mGySection thickness (mm)
Noise index
mAs
pitch
CT of the Chest
0.02
2.5
30
80
1.375
CT for PE
0.02
1.25
30
88
0.984 CT of the Abdomen
1.3
2.5
36
110 1.375
CT of the Kidney and bladder
11 2.5
36
110
1.375
CT of the Pelvis
13
2.5
36
130 1.375
CT of the Abdomen and Pelvis
13
2.5
36
130
1.375
CT Angiography
13
2.5
30
130
1.375
- Estimated Average Fetal Radiation Dose from a Single Acquisition with 64 MDCT
Type of CT exam
Dos
mGySection thickness (mm)
Noise index
mAs
pitch
CT of the Chest
0.02
2.5
30
80
1.375
- Potential Radiation Effects on the Fetus by Gestational Age and Radiation Exposure
Potential Effects by Radiation Exposure Gestational age (weeks)
<50 mDy
50-100mGy
>100 mGy
0-2 none none none 3-4 none probably none possible spontaneous abortion 5-10 none uncertain Possible malformations
11-17 none uncertain Possible defects in IQ or mental retardation
18-27 none none IQ deficits not detectable at diagnostic doses
>27 none none None applicable to diagnostic radiology
- Potential Radiation Effects on the Fetus by Gestational Age and Dose
- Under 50 mGy there is none
- With 50-100 mGy there is none at over 18 weeks and probably none under 4 weeks and uncertain at 5-17 weeks
- Over 100 mGy there are typically no issues over 18 weeks and possible issues between 4 and 17 weeks Data from ACR practice guidelines "However, no examination should be withheld when an important clinical diagnosis is under consideration. Exposure to ionizing radiation may be unavoidable, but there is no evidence to suggest that the risk to the fetus after a single imaging study and an interventional procedure is significant."
Imaging in Pregnant Patients: Examination Appropriateness
Wieseler KM et al.
RadioGraphics 2010; 30:1215-1233"The risk burden of radiation exposure to the fetus has to be carefully weighed against the benefits of obtaining a critical diagnosis quickly and using a single tailored imaging exam ."
Imaging in Pregnant Patients: Examination Appropriateness
Wieseler KM et al.
RadioGraphics 2010; 30:1215-1233
